W15 Mini 16mm Wide Washer Static WHite 24VDC 16W/Meter On-Off or PWM

Product: W15 Mini 16mm Wide Washer Static WHite 24VDC
16W/Meter On-Off or PWM

Description:

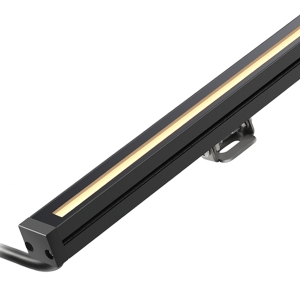

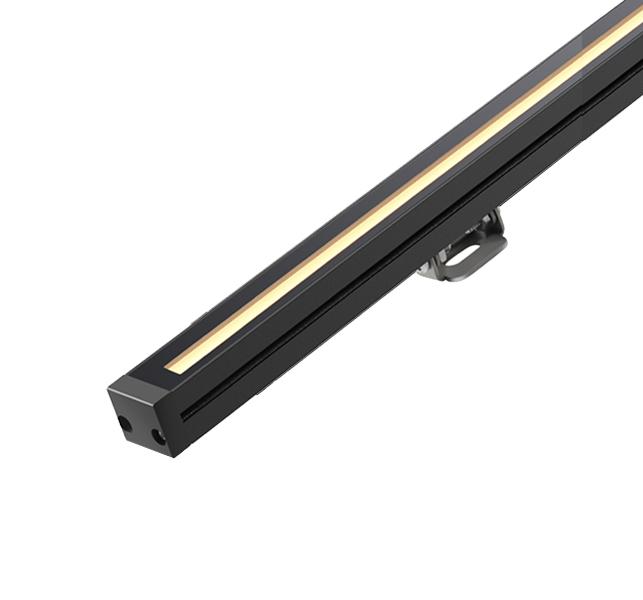

The Colordreamer W16 LED Washer is a IP66 rated exterior compact linear grazing luminaire with high output brightness.

This is a favorite choice for residential and commercial spaces.

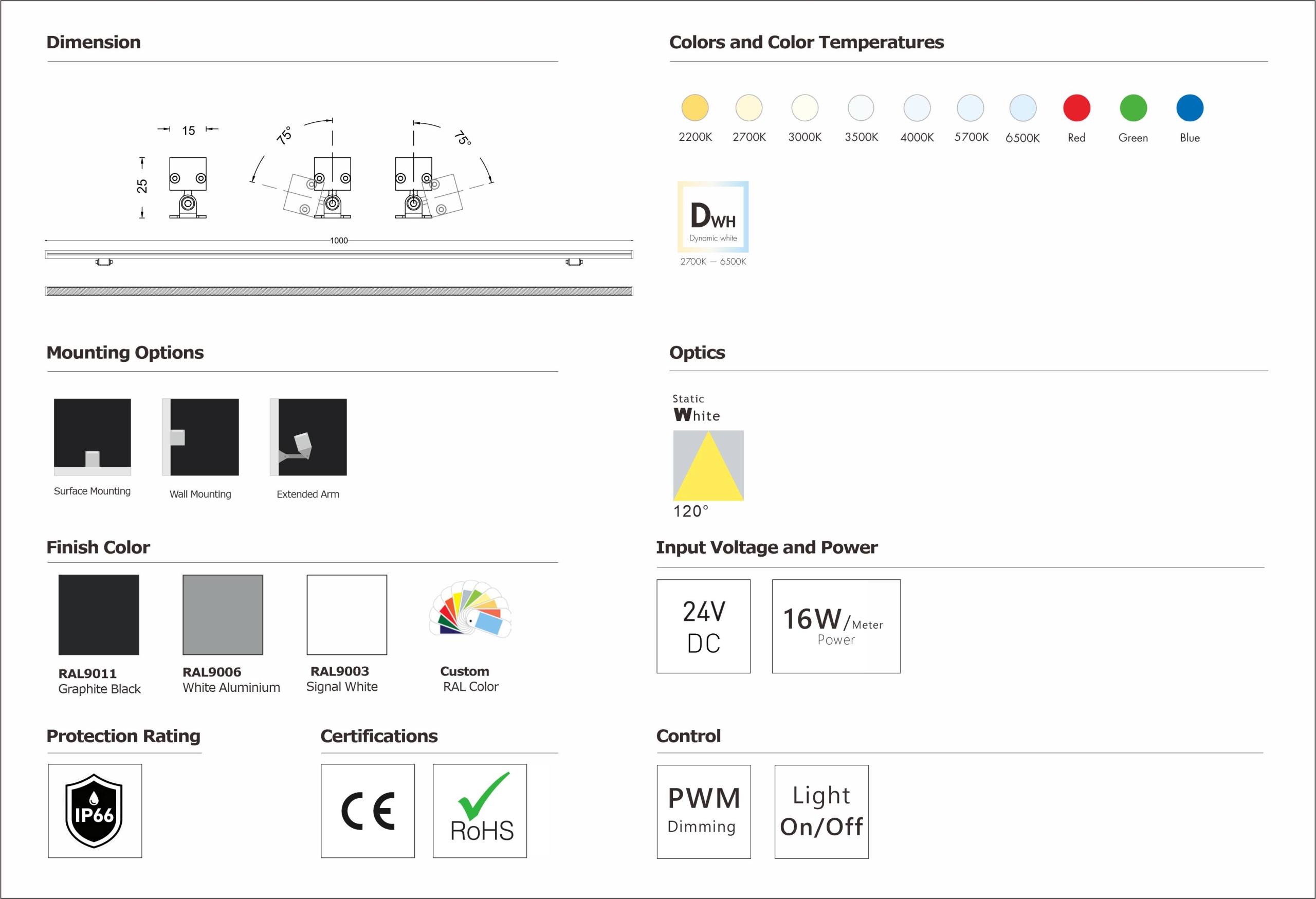

Specification

Models	W16
LED
Color	Static White
Light Source	Mid Power LED
LED Source Color	2700K/3000K/3500K/4000K/5000K/5700K/6500K
Color Consisitency	3 SDCM
CRI for White LED	Ra>90
Lumen maintenance	L70B10>50,000hours
LED QTY	304LEDs per meter
Performance
Lumen Output	1120lm per meter
Efficacy	70lm/W based at 3000K
Beam Angle	120°
Electrical
Input Voltage	24VDC
Power Consumption	16W per meter(for 500mm and 1000mm) 6W per feet(for 305mm,610mm,915mm and 1220mm)
Control
Protocols	On-off or PWM Dimmable
Physical
Housing	6063 high density extruded aluminium alloy
Lens	3mm Tempered Glass
Finish Color	Powder coating, Black/White/Grey or Custom RAL Color
Dimensions(LXWxH)	10001655mm
Length	500mm/1000mm 305mm/610mm/915mm/1220mm
Cable Entry	Bottom Entry
Mounting	Surface Mounting
Environment
Operating Temperature	-30℃ to +50℃
Storage Temperature	-40℃ to +70℃
Humidity	0-90% non-condensing
IP Rating	Dry, Damp, Wet locations IP67
Certificate and Safety
Certification	CE
Warranty	3Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty
