High-Density Chip-on-Board Array Architecture: Utilizes medium-power OSRAM Duris® series LEDs in a linear densely packed configuration, delivering superior lumen density while maintaining exceptional thermal stability.
Lens-Free Direct Emission Optics: Eliminates secondary optics to maximize optical extraction efficiency (up to 98% raw luminous flux utilization). The open-aperture design produces a smooth, Lambertian 120° beam distribution with seamless pixel-blending, providing a continuous line of light with zero visible “hot spots” or LED imaging, ideal for close-proximity cove applications。
Precision Color Control: Factory-binned to ≤2-step MacAdam ellipse (2 SDCM), ensuring batch-to-batch chromaticity consistency critical for continuous linear runs.
Integrated Constant-Current Driver: Features a fully encapsulated, Class 2 compliant switching power supply with universal input (120–277VAC, 50/60Hz), eliminating the need for remote driver enclosures and significantly simplifying low-voltage wiring constraints.
Modular Continuous-Run Design: Supports seamless mechanical and electrical linking via inter-connectable jumpers with locking connectors, enabling continuous lengths up to 100 feet (30m) from a single power feed point, drastically reducing junction boxes and field labor.
Multi-Level Output Selection: Pre-set power output options (7W / 10W / 12W per foot) via programmable driver, allowing the same SKU to be used for varying illuminance requirements (from ambient flood to accent-level grazing).
Product Specification
| Models | C42B |
| LED |
| Color | Static White |
| Light Source | Mid-Power LED |
| CCT Options | 2700K/3000K/4000K/5700K |
| Color Consisitency | 3 SDCM |
| CRI(White) | Ra>80(Ra>90 optional) |
| Lumen Maintenance | L70B10>50,000hours |
| LED Count | (28 LEDs/ft) |
| Performance |
| Lumen Output | 3360lm/m |
| Efficacy | 70lm/W based at 3000K |
| Beam Angle | 120° |
| Electrical |
| Input Voltage | 120-277VAC |
| Power Consumption | 12 W/ft (for 305mm, 610mm, 915mm, 1220mm lengths) |
| Control |
| Protocols | Light On-off DALI2 0-10V TRIAC |
| Physical |
| Housing | 6063 high density extruded aluminium alloy |
| Lens | 4mm Tempered Glass |
| Finish | Powder coating – Black / White / Grey, or custom RAL |

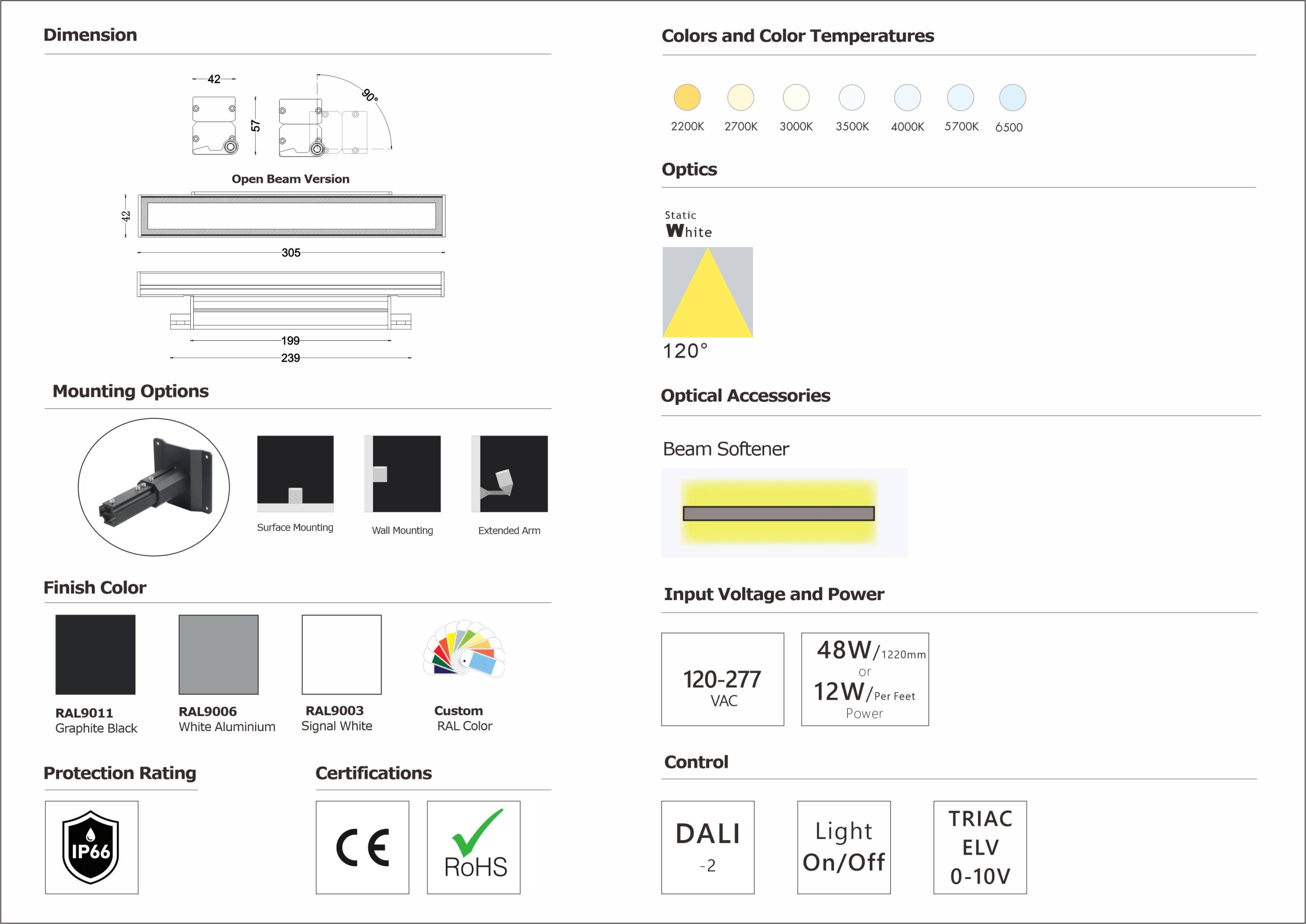

| Dimensions (incl. brackets) | 1000*42*57mm |
| Length Options | 305mm/1220mm |
| Cable Entry | Side Entry |
| Mounting | Surface Mounting |
| Accessories (optional) | Built-in micro louver |
| Environment |
| Operating Temperature | -30℃ to +50℃ |
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 0-90% non-condensing |
| IP Rating | IP67(dry, damp, wet locations) |
| Certification and Safety |
| Certification | CE |
| Wrranty | 3-year limited warranty (from date of manufacture); extended available upon request |
Note: CCT, beam angle, lumen output, and power values are typical. Production and component tolerances may result in variations up to 10%.
Order Information
Product Code Structure
C42BN-030-28-01–3000-120–B-DA
| Segment | Code | Description |
| Housing | C42B | Base model |
| Anti‑glare | N / F | None / Frosted Film |
| Length | 030 / 120 | 305mm / 1220mm |
| LED QTY | 28 / 112 / | (matched to length) |
| Color | 01 | Static White |
| CCT | 2700 / 3000 / 4000 / 5700 | Correlated Color Temperature |
| Optic | 120 | Beam angle (°) |
| Finish | B / W / G | Black / White / Grey |
| Dimming | ON/DALI/10V/TRIAC/DMX | ONOFF / DALI2 / 0-10V / TRIAC / |
