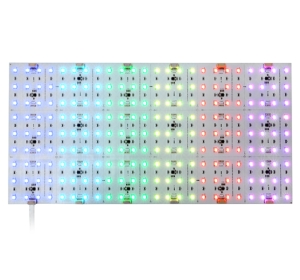

DMX Flex Sheet RGBW - DP24021604 216LEDs 18Pixels

Product: DMX Flex Sheet RGBW – DP24021604 216LEDs 18Pixels

Description:

Specification

Models	DP24021604
LED
Color	RGBW
Light Source	SMD 5050
CCT	RGBW (W:2700K/3000K/4000K/5700K/6500K)
CRI for White LED	Ra>80
LED QTY	216LEDs per sheet
Performance
Lumen Output	1720lm
Efficacy	48m/W
Beam Angle	120°
Electrical
Input Voltage	24VDC
Power Consumption	36W per sheet 2W per 80X80mm square section
Control
Protocols	DMX512
Addressing	Manual Addressing with Colordreamer addressing device
Pixels	18Pixels per Sheet
Pixel Pitch	80mm
Cutting Pitch	80X80mm
Connection
Power$Data input	Molex IP20 5PIN Connector
Physical
Material	Flex Copper PCB
Finish Color	White
Dimensions(WxlL)	240mmX480mm
Mounting	3M adhesive tape and Screw
Environment
Operating Temperature	-20℃ to +50℃
Storage Temperature	-40℃ to +70℃
Humidity	0-90% non-condensing
IP Rating	Indoor,IP20
Certification	CE
