DMX /RDM Addressing Tool-CD-MT512 SM18512PS SM18522PS SM18522PH UCS512H4LB UCS512DH

Product:DMX /RDM Addressing Tool-CD-MT512

Description:

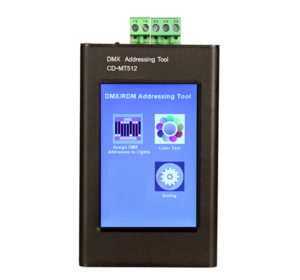

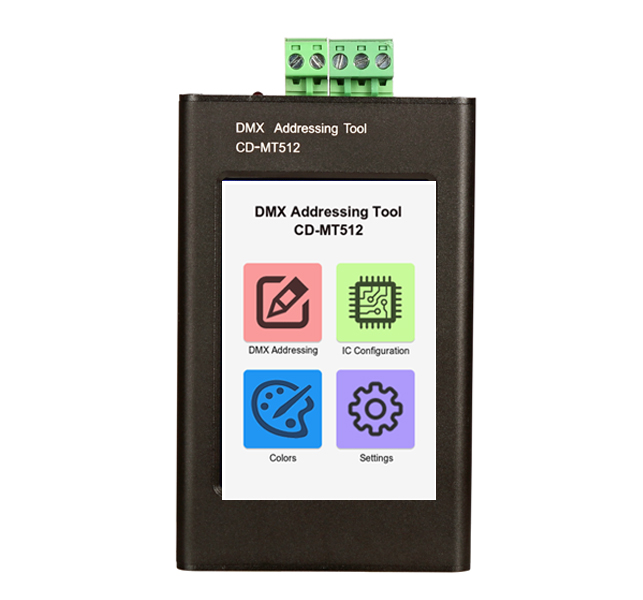

The CD-MT512 is a powerful DMX/RDM Addressing and test tool.it allows for DMX Addressing and Color testing of Lighting products. This Tool is a must for anyone involved with DMX512 installation.

Compatible with DMX512(1990) protocol and return-to-zero code protocol。

CONTACT US

Specification

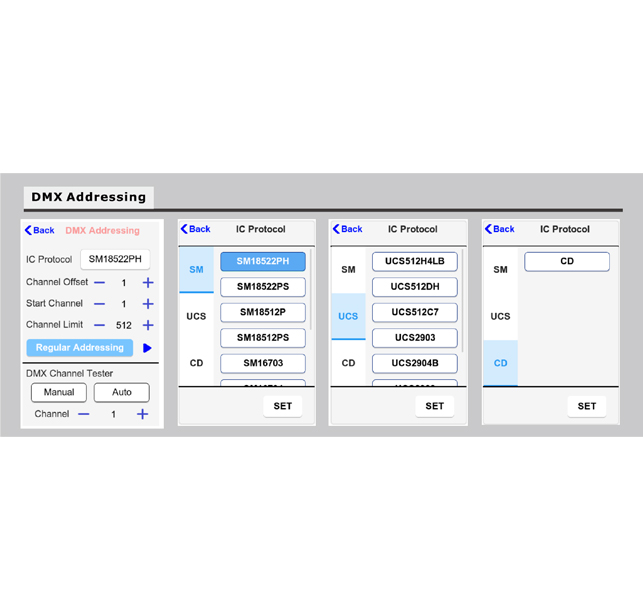

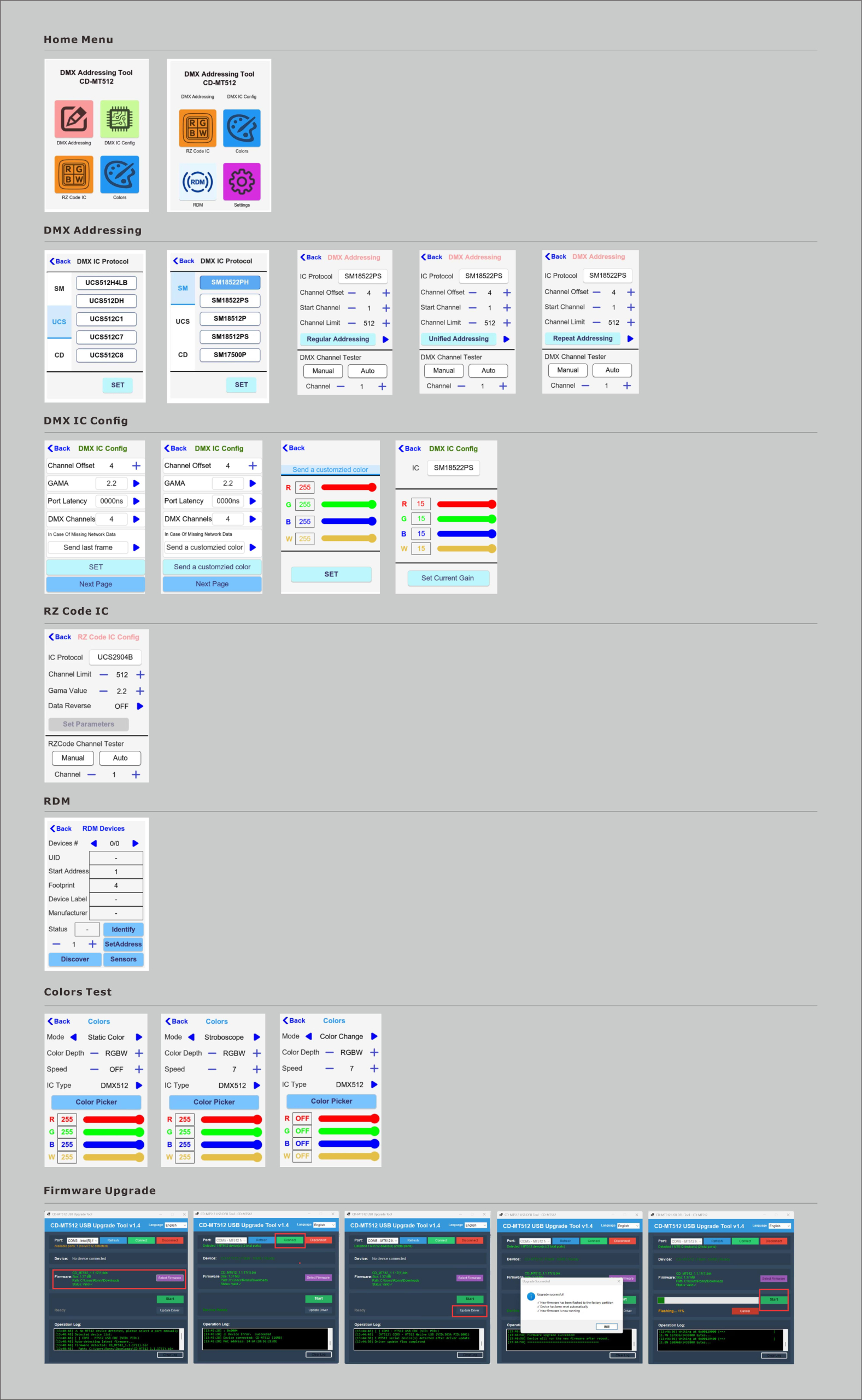

We offer regular address writing, repeated address writing, and unified address writing functions. Regular address writing sets one IC to one pixel; repeated address writing sets several ICs to one pixel; and unified address writing sets all ICs in a signal loop to one pixel. After successful address writing, we offer manual and automatic point-checking to verify correct address writing.

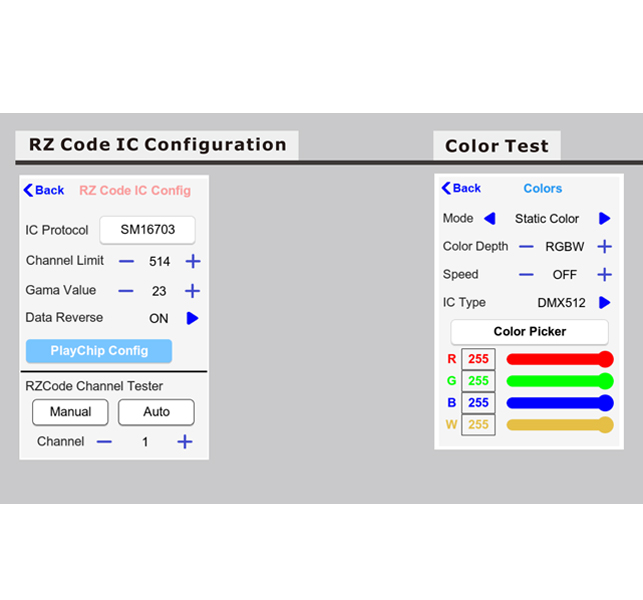

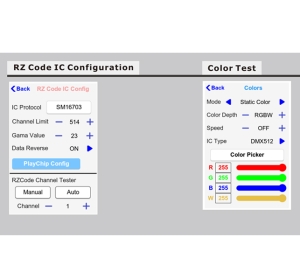

Supports color testing and point-checking verification for zero-code ICs.

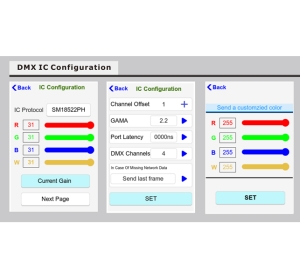

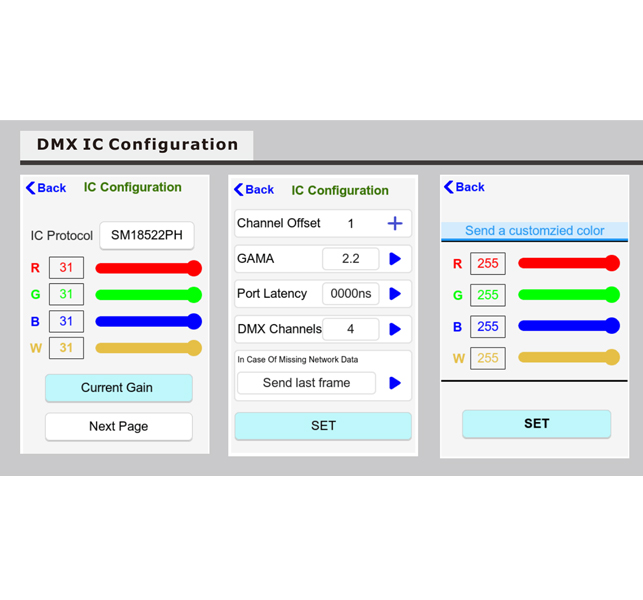

Customizable default display effect upon power-on of DMX IC OUT R/G/B/W ports

Change lamp power by altering the gain current of DMX IC OUT R/G/B/W

Set the starting address of the first lamp; other lamps in series signal loops can automatically obtain the address.

Optimized stability of large-scale RDM device search

Added 180s timeout protection to RDM discovery single round to prevent infinite blocking during single-round scans

After RDM search completion, the device list is sorted in ascending order by UID, ensuring stable list order

Supports online firmware upgrades to unlock new features without returning to the factory for program updates.

Product Specification

Models	CD-MT512
Electrical
Input Voltage	12-24VDC
USB Port	USB Type C, cable not included
Power Consumption	2W
Display	4.0-inch (diagonal) all-screen LCD Multi-Touch display
Control
DMX Outputs	512 DMX Channels
Supported DMX IC	SM18522PH/SM18522PS/SM18512P/SM18512PS/SM17500P/UCS512H4LB/UCS512DH/UCS512C1/UCS512C7/UCS512C8/UCS512C4/UCS512CN/CD
RZ Code Outputs	SPI
Supported RZ Code IC	SM16703,SM16704,SM16824,SM18703/ UCS2903,UCS2904B,UCS8903,UCS8904
IC Current Gain	Support
RDM Setup	Support
Physical
Housing Material	Aluminium
Finish Color	Black
Connector	Removable multi-pin terminal blocks
Dimensions(LXWxH)	114X71.2X24.8mm
Weight	200g
Environment
Operating Temperature	-10℃ to +50℃
Storage Temperature	-20℃ to +70℃
Humidity	0-80% non-condensing
IP Rating	Dry, Indoor IP20
Certification	CE
