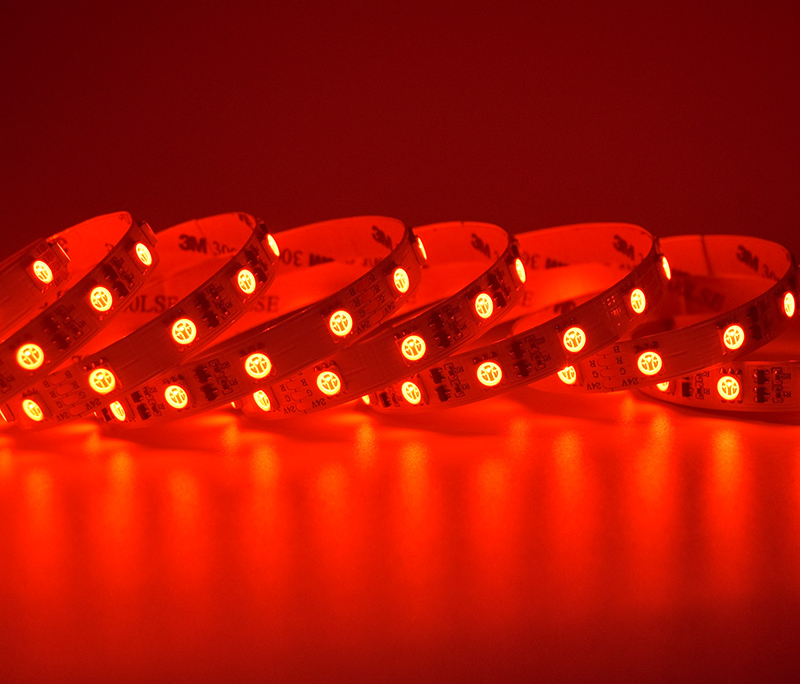

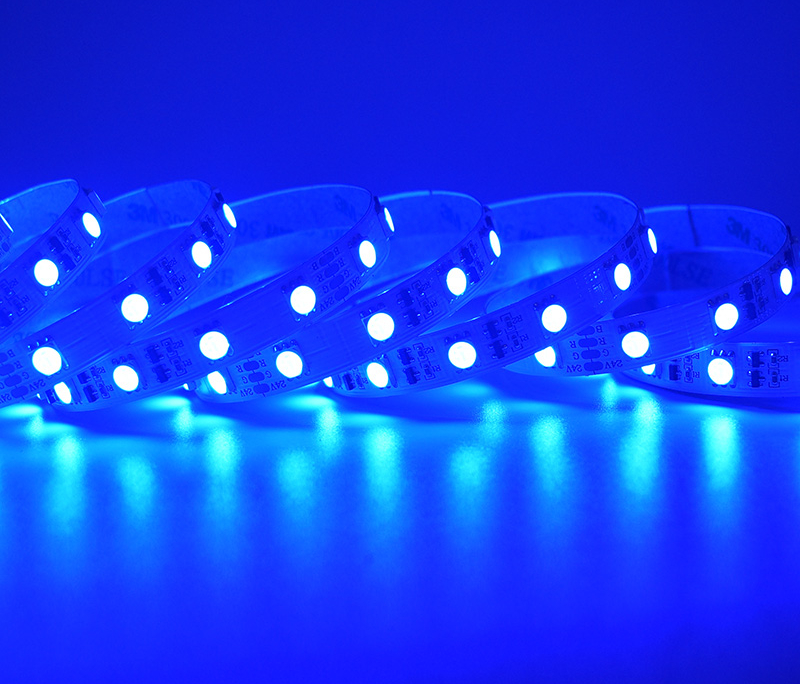

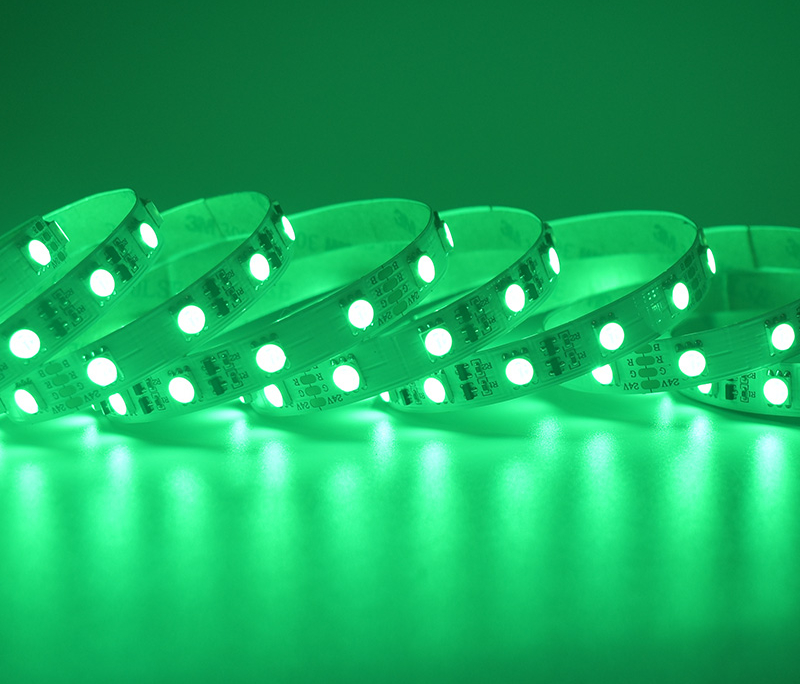

Product:LED Flexible Strip -RGB
Description:
The strip provides flexibility to fit on any curved surface.
LED is packaged with pure gold wire and large Epistar chips.
IP20 and IP67 Version available
Each strip is equipped with a 3M VHB double-sided adhesive tape.
Field cuttable.
Contant current drive.
50,000 hours
This RGB strip can be dimmed by PWM driver.
Run lengths are limited to 6amps/96Watts according to ETL.
Specification
| Models | CC5050107203 |
| LED | |
| Light Source | SMD 5050 |
| Color | Red:620-630nm Green:515-530nm Blue:460-470nm |
| CRI for White LED | N/A |
| LED QTY | 72LEDs per meter |
| Performance | |
| Lumen Output | Update later |
| Efficacy | Update later |
| Beam Angle | 120° |
| Electrical | |
| Input Voltage | 24VDC |
| Power Consumption | 12W per meter |
| Control | |
| Drive | Contant Current |
| Dimming | PWM |
| PCB Cut Point | 83.3mm |
| 6LEDS per Section | |
| LED Pitch | 13.9mm |
| Physical | |
| Material | Copper PCB |
| Housing Color | White |
| Length | 5000mm |
| PCB Width | 10mm |
| Height | 2mm |
| Mounting | 3M adhesive tape for IP20 Slicone brackets for IP67 |
| Environment | |
| Operating Temperature | -20℃ to +50℃ |
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 0-90% non-condensing |
| IP Rating | IP20/IP67 |
| Certification | CE |
