W48 Washer RGBW Quad 120-277VAC 50W/Meter DMX Control

Product:W48 Washer RGBW Discrete 120-277VAC
50W/Meter DMX Control

Description:

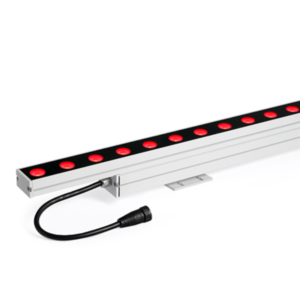

The Colordreamer W48 LED Washer is a IP66 rated exterior middle size linear grazing luminaire with high output brightness.

CONTACT US

Specification

Models	W480601204	W480901804	W481002404	W481202404
LED
Color	RGBW 4in1
Light Source	High Power LED
LED Source Color	R:618-628nm G:525-535nm B:465-475nm W:3000K/4000K/6500K
Color Consisitency	3 SDCM
CRI for White LED	Ra>80
Lumen maintenance	L70B10>50,000hours
LED QTY	12LEDs	18LEDs	24LEDs	24LEDs
Performance
Lumen Output	1200lm	1800lm	2400lm	2400lm
Efficacy	50lm/W based at 3000K	50lm/W based at 3000K	50lm/W based at 3000K	50lm/W based at 3000K
Beam Angle	20°Narrow Medium 20 x 35°Oval
Electrical
Input Voltage	120-277VAC
Power Consumption	24W	36W	48W	48W
Control
Protocols	DMX-RDM DMX-Pixel
Addressing	DMX-RDM Version:DMXcat from City Theatrical USA DMX-Pixel Version:Manual addresing with CD Smart addresser
Pixels	1Pixel per fitting
Physical
Housing	6063 high density extruded aluminium alloy
Lens	4mm Tempered Glass
Finish	Powder coating, Black/White/Grey or Custom RAL Color
Dimensions(LXWxH)	6094868.5mm (exclude brackets)	913.54868.5mm (exclude brackets)	10004868.5mm (exclude brackets)	12184868.5mm (exclude brackets)
Dimensions(LXWxH)	6094890mm (include brackets)	913.54890mm (include brackets)	10004868.5mm (exclude brackets)	12184890mm (include brackets)
Length	609mm	913.5mm	1000mm	1218mm
Cable Entry	Side Entry
Mounting	Surface Mounting
Accessory	Asymmetric Louver/Symmetric Louver
Environment
Operating Temperature	-30℃ to +50℃
Storage Temperature	-40℃ to +70℃
Humidity	0-90% non-condensing
IP Rating	Dry, Damp, Wet locations IP67
Certification and Safety
Certification	CE
Wrranty	3Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty
