W26A Mini Washer Static White 24VDC 24W/Meter On-Off or PWM

Product:W26A Mini Washer Static White 24VDC 24W/Meter On-Off or PWM

Description:

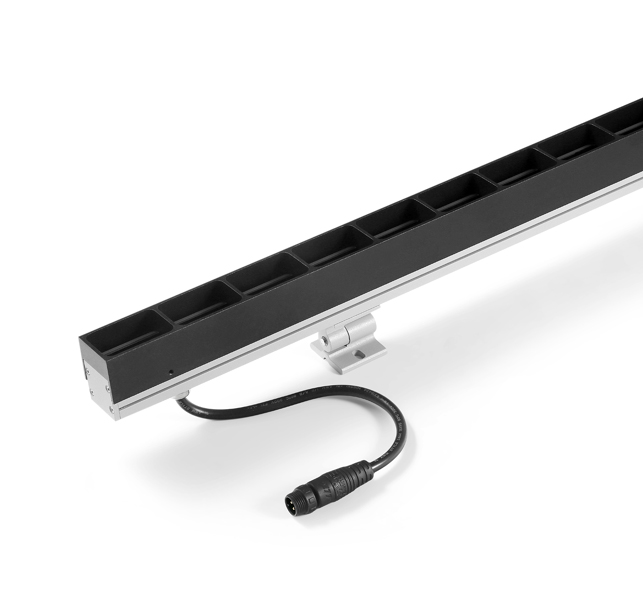

The Colordreamer W26 LED Washer is a IP66 rated exterior compact linear grazing luminaire with high output brightness.

This is a favorite choice for residential and commercial spaces.

Specification

Models	W26
LED
Color	Static White
Light Source	Mid Power LED
LED Source Color	2700K/3000K/3500K/4000K/5000K/5700K/6500K
Color Consisitency	3 SDCM
CRI for White LED	Ra>80
Lumen maintenance	L70B10>50,000hours
LED QTY	24LEDs per meter or 6LEDs per feet
Performance
Lumen Output	1680lm per meter
Efficacy	70lm/W based at 3000K
Beam Angle	20°Narrow Medium 40°Wide 20 x 40°Oval
Electrical
Input Voltage	21-24VDC
Power Consumption	24W per meter(for 500mm and 1000mm) 6W per feet(for 305mm,610mm,915mm and 1220mm)
Control
Protocols	On-off or PWM Dimmable
Physical
Housing	6063 high density extruded aluminium alloy
Lens	3mm Tempered Glass
Finish Color	Powder coating, Black/White/Grey or Custom RAL Color
Dimensions(LXWxH)	10002655mm
Length	500mm/1000mm 305mm/610mm/915mm/1220mm
Cable Entry	Bottom Entry
Mounting	Surface Mounting
Environment
Operating Temperature	-30℃ to +50℃
Storage Temperature	-40℃ to +70℃
Humidity	0-90% non-condensing
IP Rating	Dry, Damp, Wet locations IP67
Certificate and Safety
Certification	CE
Warranty	3Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty
