Higher Optical Output per Channel: With separate LED packages, each color channel can be driven at higher current levels without thermal cross-talk between dies. This enables greater individual luminous flux per color, particularly beneficial for applications requiring intense monochromatic effects or high-brightness white light output.
Better Color Consistency & Tighter Bin Control: Discrete LEDs allow each color to be independently binned and sorted before assembly, ensuring tighter wavelength and flux tolerances per channel.
Versatile Beam Angle Selection: Offers an extensive array of beam optics—including 8°,12°,15°, 20°, 30°, 45°, and asymmetric options like 15°×45° and 15°×60°—to meet precise wall-washing and accent lighting requirements.
Convenient CD-MT512 Serial Addressing: Features CD-MT512 serial addressing capability, allowing fast and easy address assignment via the DMX data line without the need for physical DIP switches or manual dialing—significantly simplifying large-scale installation and commissioning.
Rugged All-Weather Construction: Housed in a high-grade extruded aluminum alloy body with a tempered glass lens, rated IP66 for complete dust-tight protection and resistance to powerful water jets, ensuring dependable outdoor operation.
Superior Thermal Management: Optimized heat dissipation design ensures efficient thermal conduction, maintaining LED junction temperatures within safe limits to maximize lumen maintenance and extend fixture lifespan.
Adjustable Mounting Brackets: Equipped with flexible mounting brackets offering ±90° tilt , allowing precise aiming and easy adaptation to complex facade geometries.
Effortless Daisy-Chaining
Features both power and DMX input/output connections to simplify cabling and create a clean, efficient installation.

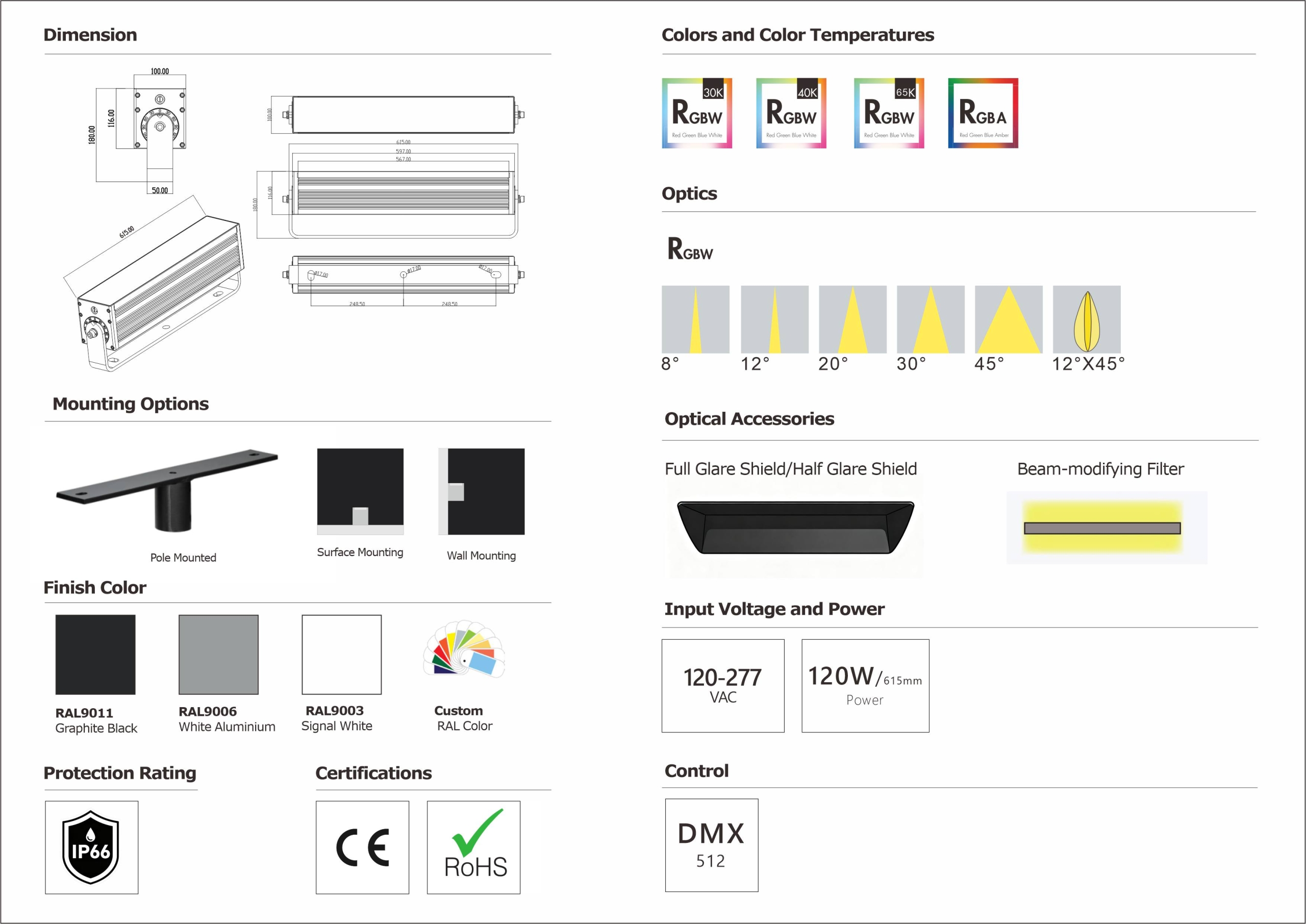

Product Specification
| Models | W1000607204D |
| LED |
| Color | RGBW |
| Light Source | High-Power LED |
| CCT Options | RGBW W=Amber/2700K/3000K/4000K/5700K |
| Color Consisitency | 2 SDCM |
| CRI(White) | Ra>80(Ra>90 optional) |
| Lumen Maintenance | L70B10>50,000hours |
| LED Count | 72 LEDs |
| Performance |
| Lumen Output | 6000lm |
| Efficacy | 50lm/W based at 3000K |
| Beam Angle | 8°Very Narrow / 12°Narrow 20°Narrow Medium / 30°Medium / 45°Wide 12+45°Oval |
| Electrical |
| Input Voltage | 120-277VAC |
| Power Consumption | 120W |
| Control |
| Protocols | DMX |
| Addressing Option | Manual addressing After writing the start address, the remaining addresses are auto-incremented sequentially. |
| Physical |
| Housing | 6063 high density extruded aluminium alloy |
| Lens | 4mm Tempered Glass |
| Finish | Powder coating – Black / White / Grey, or custom RAL |
| Dimensions (excl. brackets) | 615*100*116mm (exclude brackets) |
| Dimensions (incl. brackets) | 615*100*180mm (include brackets) |
| Length Options | 615mm |
| Cable Entry | Bottom Entry |
| Mounting | Surface Mounting |
| Environment |
| Operating Temperature | -30℃ to +50℃ |
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 0-90% non-condensing |
| IP Rating | IP67(dry, damp, wet locations) |
| Certification and Safety |
| Certification | CE |
| Wrranty | 3-year limited warranty (from date of manufacture); extended available upon request |
Note: CCT, beam angle, lumen output, and power values are typical. Production and component tolerances may result in variations up to 10%.
Order Information
Product Code Structure
W100-060-72-04D–3000–20–B-DMX
| Segment | Code | Description |
| Housing | W100 | Base model |
| Length | 060 | 615mm |
| LED QTY | 72 | (matched to length) |
| Color | 04D | RGBW Discrete |
| CCT | Amber / 2700 / 3000 / 4000 / 5700 | Correlated Color Temperature |
| Optic | 08 / 12 / 20 / 30 / 45 / 12+45 | Beam angle (°) |
| Finish | B / W / G | Black / White / Grey |
| Dimming | DMX | DMX |
