Shed 15 – Colordreamer

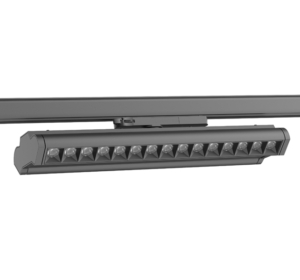

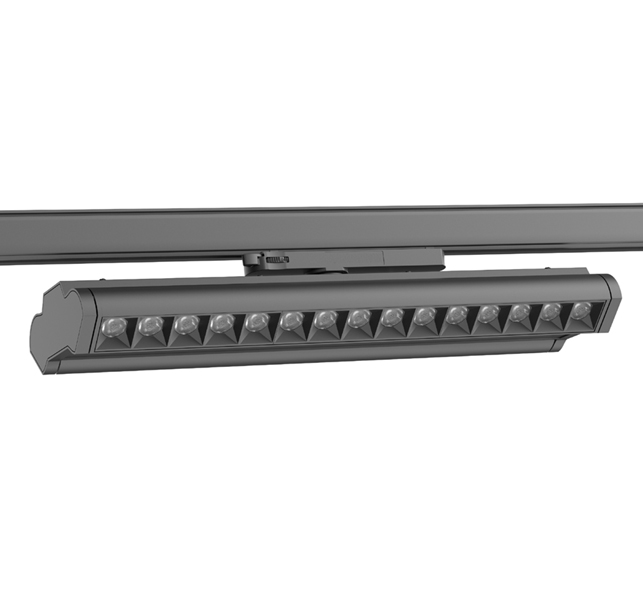

Product:Track Light Shad Static White-Shed 15

Description:

Shed is highly comfortable and efficient range of track lights. The driver is built in the rail adapter to reduce dimensions and improve heat dissipation.Precise light control.High yield LED lamp with high color rendering index.

CONTACT US

Specification

Models	Shed 10	Shed 15	Shed 20
LED
Color	Static White	Static White	Static White
Light Source	High Power LED	High Power LED	High Power LED
LED Source Color	W:3000K	W:3000K	W:3000K
CRI for White LED	Ra>90	Ra>90	Ra>90
LED QTY	10LEDs	15LEDs	20LEDs
Performance
Lumen Output	3000lm	4000lm	5000lm
Efficacy	100lm/W based at 3000K	100lm/W based at 3000K	100lm/W based at 3000K
Beam Angle	15° Narrow 24° Middle 38° Wide 50° Wide 35*75°Oval	15° Narrow 24° Middle 38° Wide 50° Wide 35*75°Oval	15° Narrow 24° Middle 38° Wide 50° Wide 35*75°Oval
Electrical
Input Voltage	120-277VAC	120-277VAC	120-277VAC
Power Consumption	30W	40W	50W
Control
Protocols	On-off/1-10V Dimmable Dali Dimmable/Triac	On-off/1-10V Dimmable Dali Dimmable/Triac	On-off/1-10V Dimmable Dali Dimmable/Triac
Physical
Housing	Aluminum 6063 with Tempered Glass	Aluminum 6063 with Tempered Glass	Aluminum 6063 with Tempered Glass
Finish Color	Powder coating, Black/White/Grey Silver or Custom RAL Color	Powder coating, Black/White/Grey Silver or Custom RAL Color	Powder coating, Black/White/Grey Silver or Custom RAL Color

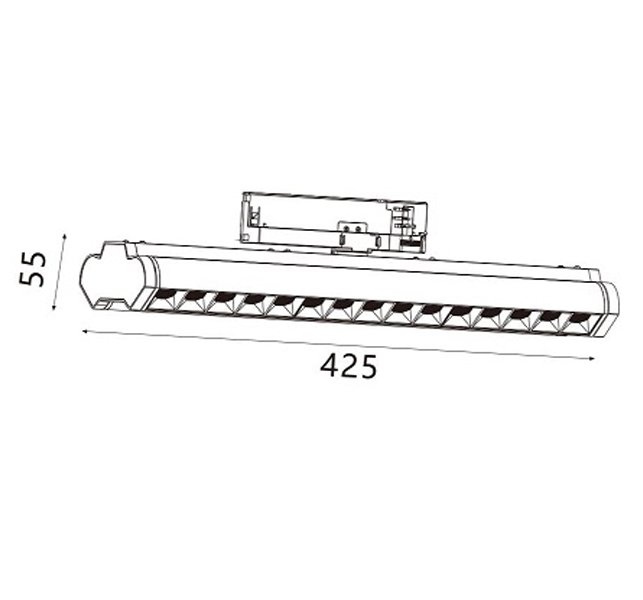

Dimensions(LXWxH)	292*55mm	425*55mm	557*55mm
Cable Entry	Bottom Entry	Bottom Entry	Bottom Entry
Mounting	Track Mounting	Track Mounting	Track Mounting
Packing	Update soon	Update soon	Update soon
Environment
Operating Temperature	-30℃ to +50℃	-30℃ to +50℃	-30℃ to +50℃
Storage Temperature	-40℃ to +70℃	-40℃ to +70℃	-40℃ to +70℃
Humidity	Track Mounting	Track Mounting	Track Mounting
IP Rating	Dry locations IP20	Dry locations IP20	Dry locations IP20
Certificate and Safety
Certification	CE	CE	CE
Warranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty
