QUAD M – Colordreamer

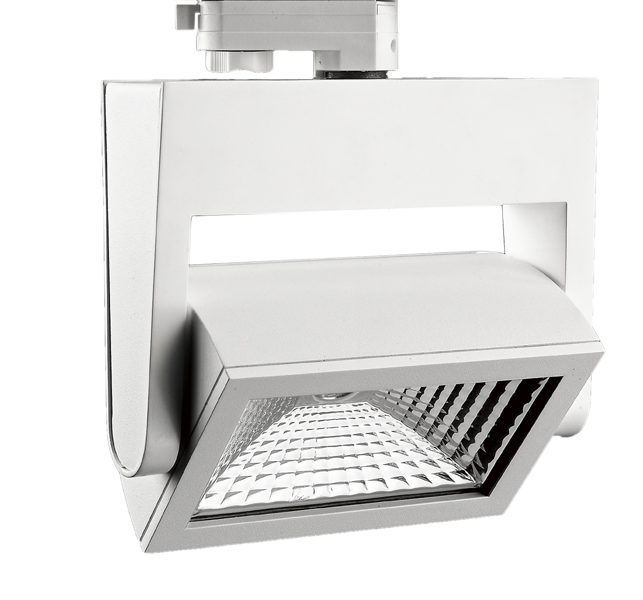

Product:Track Light Static White QUAD M

Description:

Quad is highly comfortable and efficient range of track lights. The driver is built in the rail adapter to reduce dimensions and improve heat dissipation.Precise light control.High yield LED lamp with high color rendering index.

CONTACT US

Specification

Models	QUAD S	QUAD M
LED
Color	Static White	Static White
Light Source	High Power LED	High Power LED
LED Source Color	W:3000K W:4000K	W:3000K W:4000K
CRI for White LED	Ra 90	Ra 90
LED QTY	1LEDs	1LEDs
Performance
Lumen Output	3800-3900lm	5000-5100lm
Efficacy	100lm/W based at 4000K	100lm/W based at 4000K
Beam Angle	90*60°Oval	90*70°Oval
Electrical
Input Voltage	120-2477VAC	120-2477VAC
Power Consumption	32W	43W
Control
Protocols	On-off/1-10V Dimmable Dali Dimmable/Triac	On-off/1-10V Dimmable Dali Dimmable/Triac
Physical
Housing	Aluminum 6063 with Tempered Glass	Aluminum 6063 with Tempered Glass
Finish Color	Powder coating, Black/White/Grey Silver or Custom RAL Color	Powder coating, Black/White/Grey Silver or Custom RAL Color

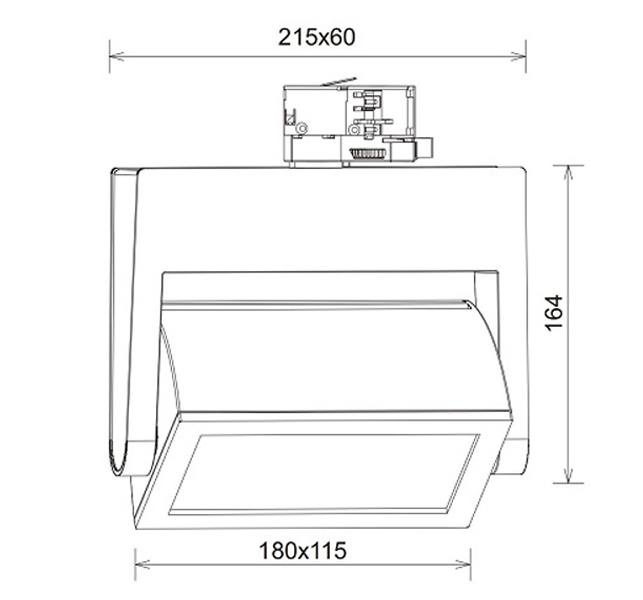

Dimensions(LXWxH)
Cable Entry	Bottom Entry	Bottom Entry
Mounting	Track Mounting	Track Mounting
Packing	Update soon	Update soon
Environment
Operating Temperature	-30℃ to +50℃	-30℃ to +50℃
Storage Temperature	-40℃ to +70℃	-40℃ to +70℃
Humidity	Track Mounting	Track Mounting
IP Rating	Dry locations IP20	Dry locations IP20
Certificate and Safety
Certification	CE	CE
Warranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty
