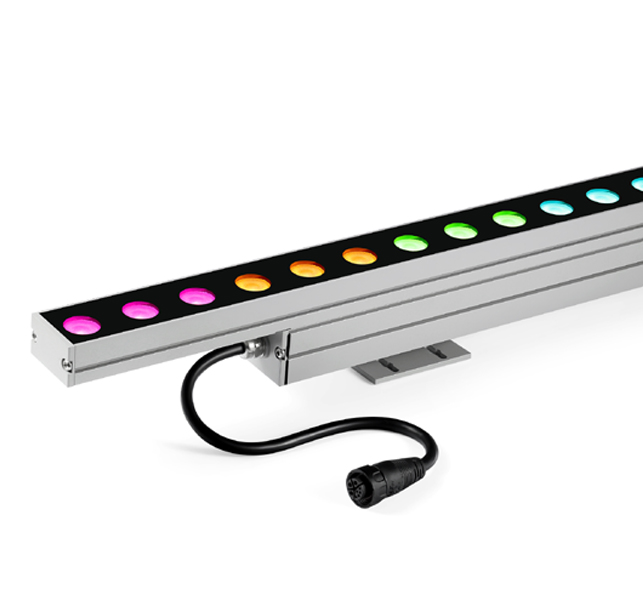

Superior Light Source: Equipped with 48 high-intensity RGBW LEDs, delivering exceptional brightness, consistent color uniformity, and a rated lifespan of over 50,000 hours
Advanced Optical Control: Features an visor (hood) and is supplied with a comprehensive anti-glare accessory kit, including both symmetrical and asymmetrical louvers. This allows for precise light shaping and glare mitigation in various installation scenarios.
Versatile Mounting Options: Comes standard with an adjustable mounting bracket and a optional telescopic arm bracket system, facilitating flexible installation on varying wall profiles and ensuring secure, level positioning.
Precision Dimming & Control: Supports DMX512 with PWM dimming at high frequencies for flicker-free operation from 0–100%, compatible with high-speed camera shooting.
Serial DMX address writing
In one loop, you write the starting address for the first fixture, and the remaining fixtures in that loop will automatically assign their own addresses sequentially.
Robust Construction: Housed in a high-efficiency thermal aluminum extrusion body with a tempered glass diffuser, ensuring optimal heat dissipation and reliable performance in outdoor environments IP67 rated.
Product Specification
| Models | W481204804D-1P |
| LED |
| Color | RGBW |
| Light Source | High-Power LED |
| CCT Options | Amber / PC Amber /W2700K/W3000K/4000K/5700K |
| Color Consistency | 2 SDCM |
| CRI(White) | Ra>80(Ra>90 optional) |
| Lumen Maintenance | L70B10>50,000hours |
| LED Count | 12 LEDs/ft |
| Performance |
| Lumen Output | 2400lm/m |
| Efficacy | 50lm/W based at 3000K |
| Beam Angle | 8°Very Narrow 12°Narrow 20°Narrow Medium,30°Medium 45°Wide 12*45°Oval |
| Electrical |
| Input Voltage | 120-277VAC |
| Power Consumption | 48 W/m (for 500mm & 1000mm lengths)
15 W/ft (for 305mm, 610mm, 915mm, 1220mm lengths) |
| Control |
| Protocols | DMX512 |
| Pixel Count | 1 Pixel per fitting |
| Addressing Option | Manual addressing After writing the start address, the remaining addresses are auto-incremented sequentially. |
| Physical |
| Housing | 6063 high density extruded aluminum alloy |
| Lens | 4mm Tempered Glass |
| Finish | Powder coating – Black / White / Grey, or custom RAL |
| Dimensions (excl. brackets) | 1000*48*68.5mm |
| Dimensions (incl. brackets) | 1000*48*90mm |
| Length Options | 500mm/1000mm 305mm/610mm/915mm/1220mm |
| Cable Entry | Side Entry |
| Mounting | Surface Mounting |
| Accessories (optional) | Built-in micro louver |
| Environment |
| Operating Temperature | -30℃ to +50℃ |
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 0-90% non-condensing |
| IP Rating | IP67(dry, damp, wet locations) |
| Certification and Safety |
| Certification | CE |
| Wrranty | 3-year limited warranty (from date of manufacture); extended available upon request |
Note: CCT, beam angle, lumen output, and power values are typical. Production and component tolerances may result in variations up to 10%.
Order Information
Product Code Structure
W48N–120-48-04–D–1P–3000–20–B-DMX
| Segment | Code | Description |
| Housing | W48 | Base model |
| Anti‑glare | N / S / A | None / Symmetric Louver / Asymmetric Louver |
| Length | 050 / 100 / 060 / 090 / 120 | 500mm / 1000mm / 610mm / 915mm / 1220mm |
| LED QTY | 20 / 40 / 24 / 36 / 48 | (matched to length) |
| Color | 04D | RGBW Discrete LED |
| Pixel | 1P | 1 Pixel |
| Optic | 08 / 12 / 20 / 30 / 45 / 12+45 | Beam angle (°) |
| Finish | B / W / G | Black / White / Grey |
| Dimming | DMX | DMX |
