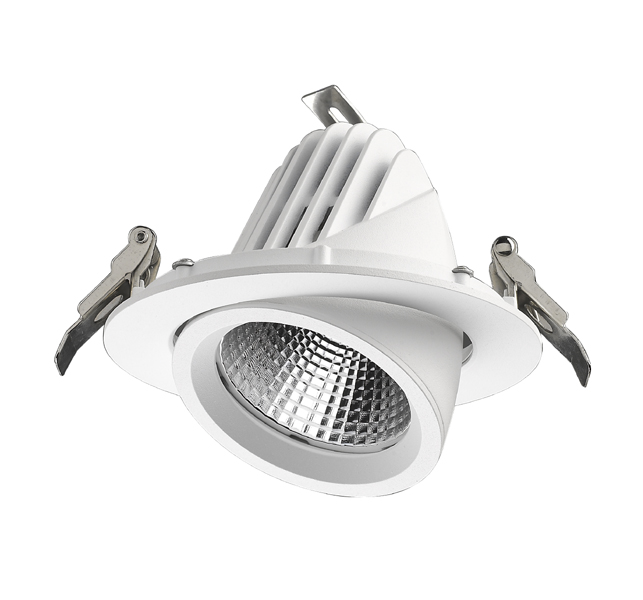

LED Down light Static White Φ 140

Product:LED Down light Static White Φ 140

Description:

The Colordreamer LED Down light is a IP20 rated exterior compact linear grazing luminaire with high output brightness.

High yield LED lamp with high color rendering index.

Precise light control, 15°,20°，40°, 55° beam lens options.

Super modular design, replacing LED module, trims, beam lens,honeycomb filter without any needs for tools.

Anti-glare accessories provide maximum visual comfort.

CONTACT US

Specification

Models	R140	R165	R195
LED
Color	Static White	Static White	Static White
Light Source	Mid Power LED	Mid Power LED	Mid Power LED
LED Source Color	W:3000K W4000K	W:3000K W4000K	W:3000K W4000K
CRI for White LED	Ra 90	Ra 90	Ra 90
LED QTY	1LEDs	1LEDs	1LEDs
Performance
Lumen Output	2200-2300lm	3500-3800lm	4500-4600lm
Efficacy	100lm/W based at 3000K	100lm/W based at 3000K	100lm/W based at 3000K
Beam Angle	15°Narrow 20°Narrow 45°Wide 55°Wide	15°Narrow 20°Narrow 40°Wide 55°Wide	15°Narrow 20°Narrow 40°Wide 55°Wide
Electrical
Input Voltage	120-277VAC	120-277VAC	120-277VAC
Power Consumption	28W	35W	50W
Control
Protocols	On-off/1-10V Dimmable Dali Dimmable/Triac	On-off/1-10V Dimmable Dali Dimmable/Triac	On-off/1-10V Dimmable Dali Dimmable/Triac
Physical
Housing	Aluminum 6063 with Tempered Glass	Aluminum 6063 with Tempered Glass	Aluminum 6063 with Tempered Glass
Finish Color	Powder coating, Black/White/Grey Silver or Custom RAL Color	Powder coating, Black/White/Grey Silver or Custom RAL Color	Powder coating, Black/White/Grey Silver or Custom RAL Color

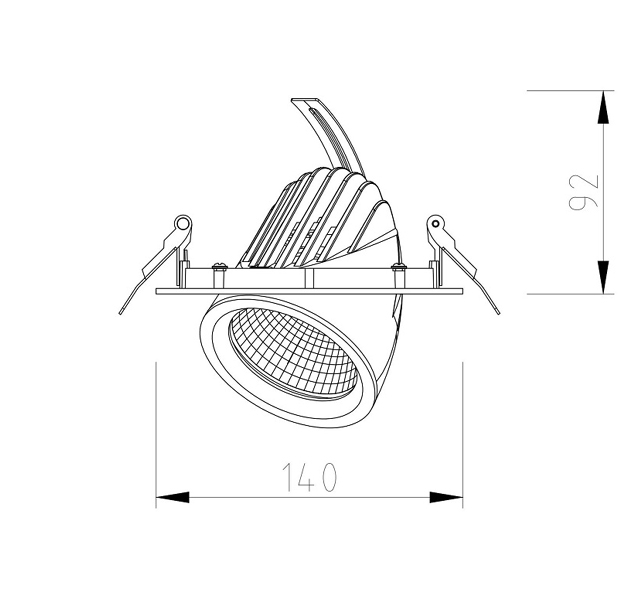

Diameter	14*92mm	165*125mm	195*144mm
Cable Entry	Bottom Entry	Bottom Entry	Bottom Entry
Mounting	Insert Mounting	Insert Mounting	Insert Mounting
Packing	Update soon	Update soon	Update soon
Environment
Operating Temperature	-30℃ to +50℃	-30℃ to +50℃	-30℃ to +50℃
Storage Temperature	-40℃ to +70℃	-40℃ to +70℃	-40℃ to +70℃
Humidity	0-90% non-condensing	0-90% non-condensing	0-90% non-condensing
IP Rating	Dry, Damp, Wet locations IP20	Dry, Damp, Wet locations IP20	Dry, Damp, Wet locations IP20
Certificate and Safety
Certification	CE	CE	CE
Warranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty
