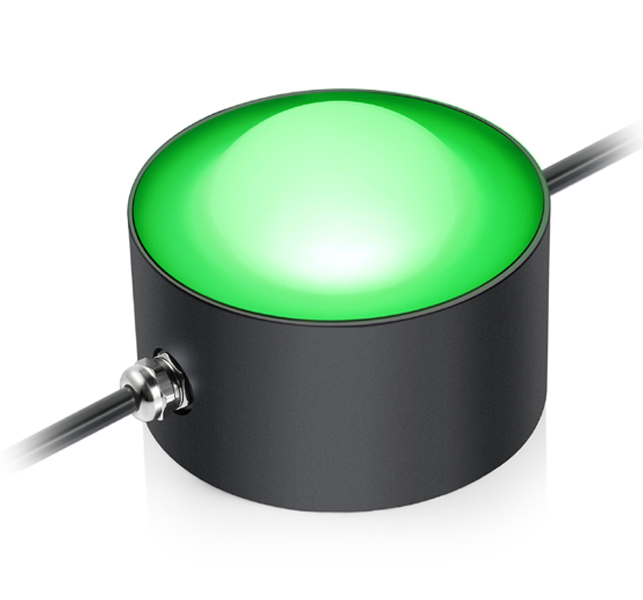

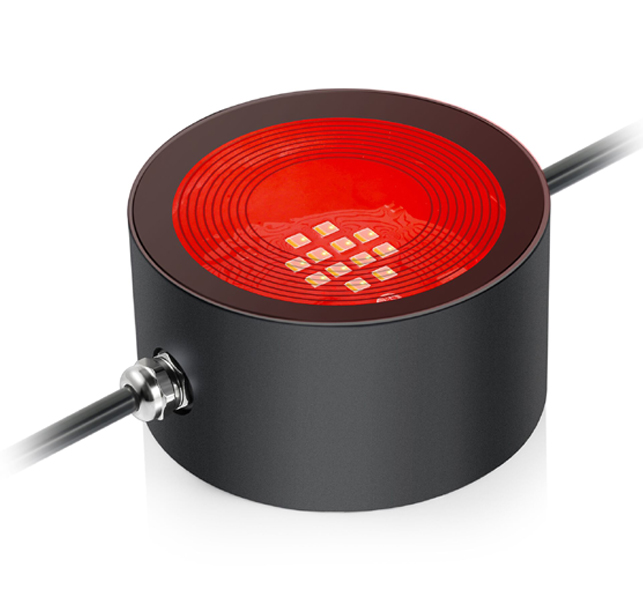

DMX Pixel Dot - DX100 48VDC 16W

Product: DMX Pixel Dot – DX100 48VDC 16W

Description:

The Colordreamer DX128 LED Pixel Dot is an exterior middle size Direct-view dot with high output brightness. High quality LEDs achieve good reliably for outdoor application.

CONTACT US

Specification

Models	DX1281204
LED
Color	RGBW
Light Source	CREE
Color	R:619-624nm G:520-540nm B:460-480nm W:3000K/4000K/5700K
CRI for White LED	Ra>80
LED QTY	12LEDs
Performance
Lumen Output	440lumen/Diffused Dome Lens RGBW(W3000K)
Efficacy	22lumen/W Diffused Dome Lens / RGBW(W3000K)
Beam Angle	140° Diffused Dome Lens
Electrical
Input Voltage	48VDC
Power Consumption	20W
Control
Protocols	DMX512 Control
PWM Frequency	1KHz@16-Bit Grayscale 256KHz@8-Bit Grayscale
Addressing	Auto Addressing
Physical
Material	Aluminum 6063 Body with UV Protected Cover
Finish Color	Powder coating, Black/Grey Silver or Custom RAL Color
Optics	Diffused Dome Lens
Dimensions (LXWxH)	152X128*75mm
Cable Entry	Side Entry/Bottom Entry
Mounting	Surface Mounted
Packing	Package Size 533636cm
Environment
Operating Temperature	-30℃ to +50℃
Storage Temperature	-40℃ to +70℃
Humidity	0-90% non-condensing
IP Rating	Dry, Damp, Wet locations IP67
Certification and Safety
Certification	CE/ETL
Warranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty
