DMX Pixel Dot - DC50 24VDC 3W

Product: DMX Pixel Dot – DC50 24VDC 3W

Description:

Specification

Models	DC501204	DM501204
LED
Color	RGBW
Light Source	CREE
Color	R:619-624nm G:520-540nm B:460-480nm W:3000K/4000K/5700K
CRI for White LED	Ra>80
LED QTY	12LEDs
Performance
Lumen Output	114lumen/Diffused Dome Lens RGBW (W3000K)	54lumen/Diffused Dome Lens RGBW (W3000K)
Efficacy	38lumen/Transparent Flat Lens RGBW (W3000K)	18lumen/Diffused Dome Lens RGBW (W3000K)
Beam Angle	100°Transparent Flat Lens	110°Diffused Dome Lens
Electrical
Input Voltage	24VDC
Power Consumption	3W
Control
Protocols	DMX512 Control
PWM Frequency	1KHz@16-Bit Grayscale 256KHz@8-Bit Grayscale
Addressing	Manual addressing by daisy-chain
Physical
Material	Aluminum 6063 Body with UV Protected Cover
Finish Color	Powder coating, Black/Grey Silver or Custom RAL Color

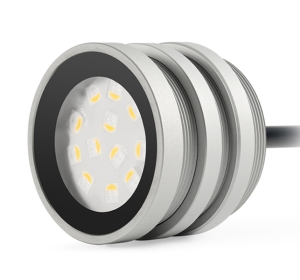

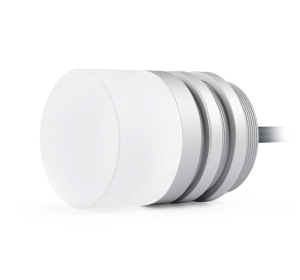

Optics	Transparent Flat Lens	Diffused Dome Lens
Dimensions (LXWxH)	70x50x85mm (Transparent Flat Lens)	70x50x112mm (Diffused Dome Lens)
Cable Entry	Bottom Entry
Mounting	Surface Mounted
Packing	Package Size 533636cm
Environment
Operating Temperature	-30℃ to +50℃
Storage Temperature	-40℃ to +70℃
Humidity	0-90% non-condensing
IP Rating	Dry, Damp, Wet locations IP67
Certification and Safety
Certification	CE/ETL
Warranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty
