DMX Pixel Dot - DC40 | Colordreamer

Product:DMX Pixel Dot – DC40

Description:

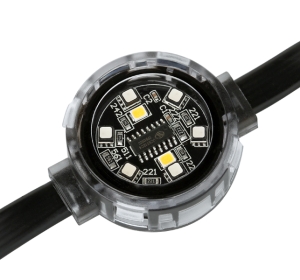

The Colordreamer DC40 LED Pixel Dot is an exterior mini size Direct-view dot with high output brightness. Clear or diffused lens available for different application. Custom pixel pitch from 100mm to 1000mm。

CONTACT US

Specification

Models	DC400603	DC400804
Color	RGB	RGBW
Light Source	Epistar or CREE LED	Epistar or CREE LED
Color	R:619-624nm G:520-540nm B:460-480nm	R:619-624nm G:520-540nm B:460-480nm W:3000K/4000K/5700K
CRI for White LED	–	Ra>80
LED QTY	6LEDs	6RGB LEDs+2White LEDs
Performance
Lumen Output	Update soon	Update soon
Efficacy	Update soon	Update soon
Beam Angle	110°Transparent Flat Lens
Electrical
Input Voltage	24VDC	24VDC
Power Consumption	1.4W	1.8W
Control
Protocols	DMX512 Control
PWM Frequency	2KHz@16-Bit Grayscale
Addressing	Manual Addressing with Colordreamer Addressing Tool CD-MT512
Pixel Pitch	100mm-1000mm
Physical
Material	Polycarbonate Body with UV Protected Lens
Finish Color	Transparent
Lens	Transparent Flat Lens
Dimensions(LXWxH)	47.5X40X15mm
Max.length	10Meter per string
Cable Entry	Side Entry
Mounting	Surface Mounting with Screw Catenary Installation with steel wire
Packing	Package Size 533636cm
Environment
Operating Temperature	-30℃ to +50℃
Storage Temperature	-40℃ to +70℃
Humidity	0-90% non-condensing
IP Rating	Dry, Damp, Wet locations IP67
Certification and Safety
Certification	CE
Warranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty
